All New Modified Class
The all-new MRR V2m modified class motors are based on our successful MRR Team Edition V2 stock class platform. With a completely redesigned stator and windings, updated end cap, and 12.20mm ultra smooth rotor, the V2m provides much smoother low to mid-range power band. It also reduces weight by an average of 12% over its predecessor.
Updated End Cap
The V2m series have updated end cap to improve the durability of the sensor connector housing. It ensures the sensor connector does not get damaged easily by impact.
All New 12.20mm Ultra Smooth Rotor
The V2m equips with all new 12.20mm ultra smooth rotor. It provides much smoother low to mid-range power band. Optional 12.50mm rotors for high torque and ultra-high torque are also available for different track conditions and sizes.
Standard Rotor: MCL4174 12.20mm Ultra Smooth Rotor (Red)
Optional Rotor: MCL4175 12.50mm High Torque Rotor (Red), MCL4187 12.50mm Ultra High Torque Rotor (Black)
MRR V2m Features
- Engineered & Developed right here in the U.S.A.
- 100% Hand Built
- Premium Stator Material (Made in Japan)
- ALL NEW stator design
- ALL NEW case structure
- ALL NEW sensor unit design
- Average 12% lighter than previous MRR series motors
- ALL NEW 12.2mm Ultra Smooth Rotor as standard equipment
- Available in 3.5/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.5/9.5/10.5
- BRCA approved. ROAR approval pending

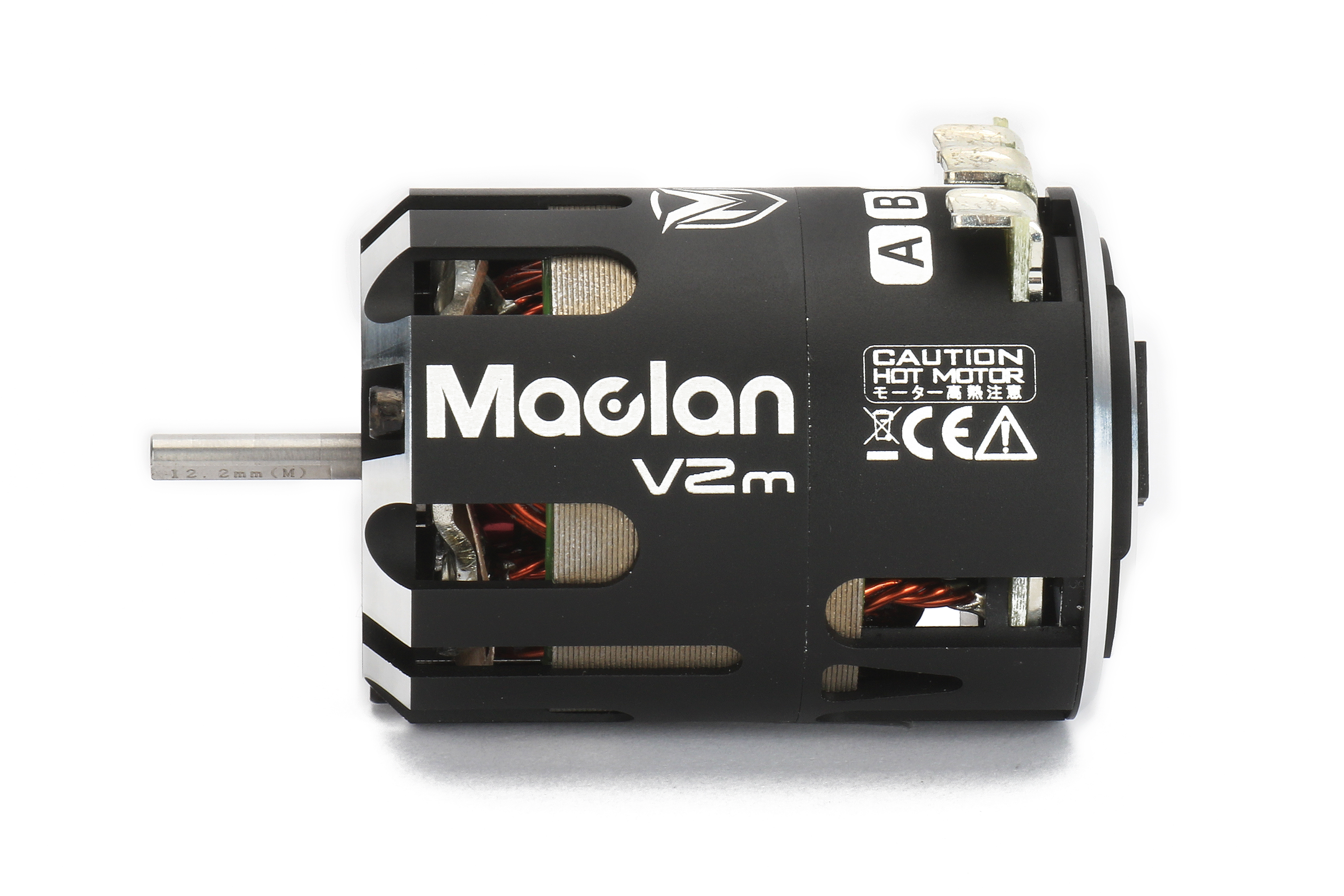

MRR Team Edition V2m Modified Competition Motor
DETAIL SPECIFICATIONS
| Item | Value |
|---|---|
| Available Turns: | 3.5/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.5/9.5/10.5 |
| Short Stack: | No |
| Case Length: | 2.02in/51.50mm |
| Case Diameter: | 1.42in/36mm |
| Shaft Extension: | 0.552in/14mm |
| Shaft Size: | 3.17mm |
| Weight: | 152~159g |
| Poles: | 2 Poles |
| Default Rotor: | 3.5T to 9.5T default with MCL4174, 10.5T defaults with MCL4143 |
| BRCA & ROAR Approved: | IFMAR/BRCA/ROAR approved |
| Factory Limited Warranty: | 120 days after the date of purchase |
OPTIONAL & SPARE PARTS LIST
| Part Name | Part Number |
|---|---|
| MRR V2m 3.5T Sensored Competition Motor | MCL1037 |
| MRR V2m 4.5T Sensored Competition Motor | MCL1038 |
| MRR V2m 5.0T Sensored Competition Motor | MCL1039 |
| MRR V2m 5.5T Sensored Competition Motor | MCL1040 |
| MRR V2m 6.0T Sensored Competition Motor | MCL1041 |
| MRR V2m 6.5T Sensored Competition Motor | MCL1042 |
| MRR V2m 7.0T Sensored Competition Motor | MCL1043 |
| MRR V2m 7.5T Sensored Competition Motor | MCL1044 |
| MRR V2m 8.5T Sensored Competition Motor | MCL1045 |
| MRR V2m 9.5T Sensored Competition Motor | MCL1046 |
| MRR V2m 10.5T Sensored Competition Motor | MCL1047 |
| Part Name | Part Number |
|---|---|
| MRR V2m 12.20mm Ultra Smooth Rotor (Red) | MCL4174 |
| MRR V2m 12.50mm High Torque Rotor (Red) | MCL4175 |
| MRR V2m 12.50mm Ultra High Torque Rotor (Black) | MCL4187 |
| MRR V2m 3.5T Stator | MCL4176 |
| MRR V2m 4.5T Stator | MCL4177 |
| MRR V2m 5.0T Stator | MCL4178 |
| MRR V2m 5.5T Stator | MCL4179 |
| MRR V2m 6.0T Stator | MCL4180 |
| MRR V2m 6.5T Stator | MCL4181 |
| MRR V2m 7.0T Stator | MCL4182 |
| MRR V2m 7.5T Stator | MCL4183 |
| MRR V2m 8.5T Stator | MCL4184 |
| MRR V2m 9.5T Stator | MCL4185 |
| MRR V2m 10.5T Stator | MCL4186 |
| Maclan MRR Team Edition V2/V2m Bearing | MCL4148 |
| MRR Team Edition V2/V2m Sensor Unit | MCL4149 |
| Aluminum Screw Kit for MRR Team Edition V2/V2m Motors | MCL4165 |
