Diamondback MX540/550 4-Pole Motor

The Diamondback MX Series motor has a simple goal in mind. It is to provide ultimate 4-pole performance and quality with friendly price tags for racers and bashers. You can’t expect more from a brushless motor that gives you overall performance at this price range. The 4-pole technology brings mega torque for all 1/10 applications.

The MX540 is a 36mm x 50mm 540 class motor with 3.17mm motor shaft. It has 2 KV options, 4000KV and 5000KV, to support all 1/10 2WD applications, 2WD buggy, 2WD stadium truck, and 2WD SC.

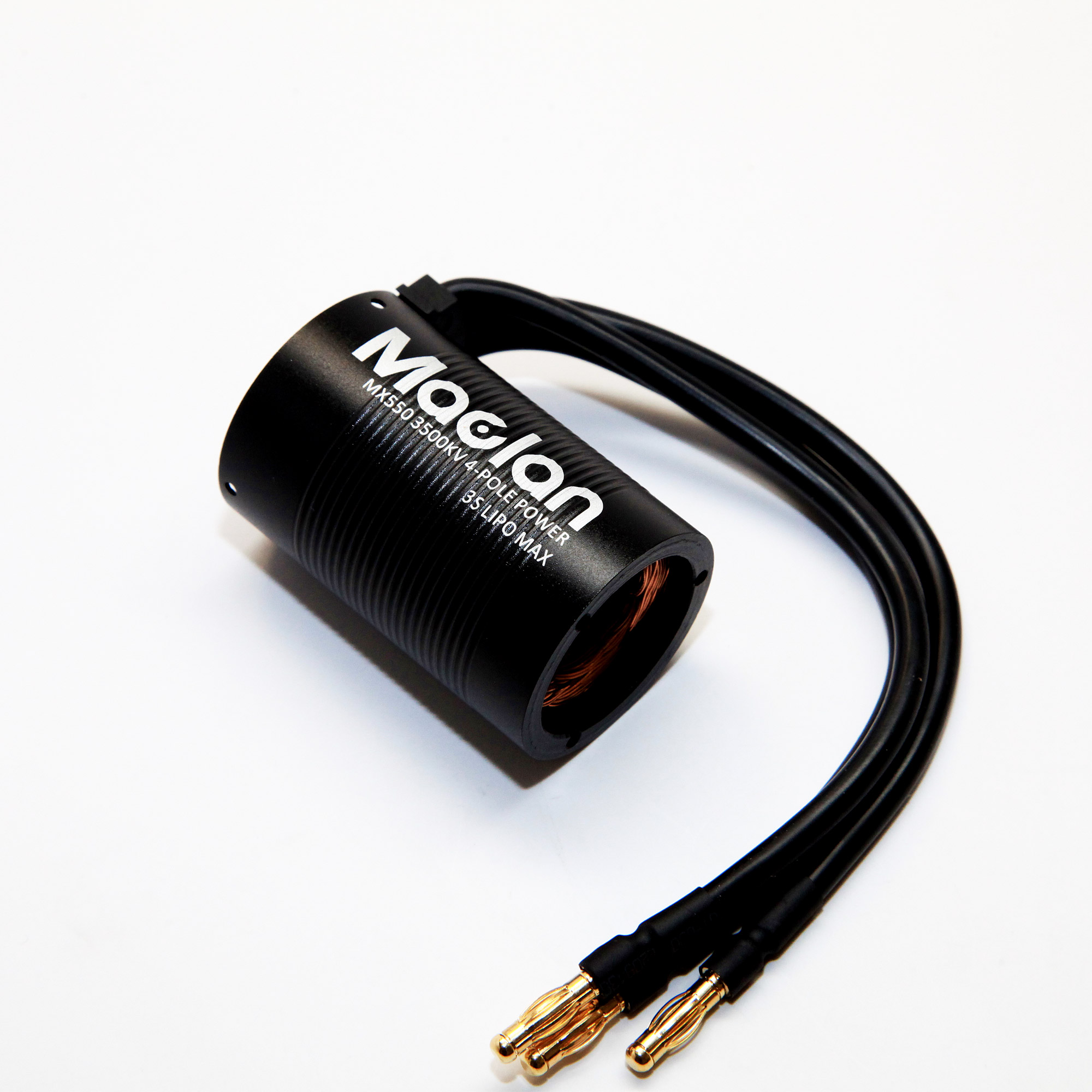

The MX550 is a longer 550 class in size of 36mm x 60mm.  It provides 30% more power than the shorter MX540 with it’s heavy duty 5mm motor shaft for all 4WD applications such as 4WD SC and monster truck. There are 2 KV options, 3500KV and 4200KV. The 3500KV supports up to 3S Li-Po for the insane power for your truck!!

• 12-Slot/4-Pole design with mega torque
• All aluminum structure for maximum thermal dissipation and long term durability
• Premium material  for maximum performance
• Rebuildable design with all spare parts available from Maclan Racing
